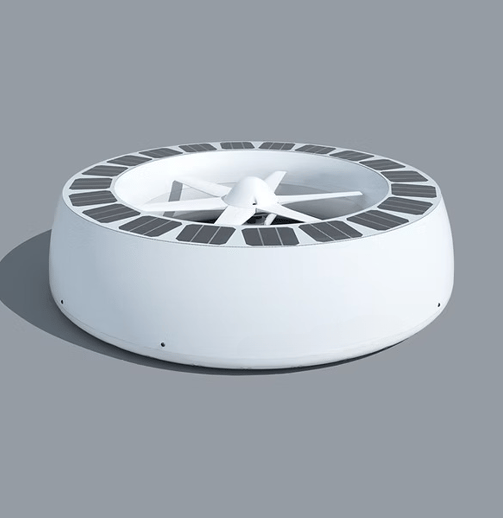

ECOWIN 07

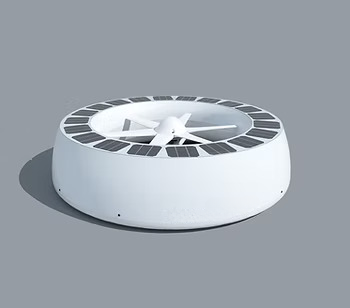

ECOWIN 035

Smart IoT Lamppost powered by wind and solar with integrated energy storage and grid connection that enables multiple integrated applications.

With our solution, it's possible to transform a simple street light into a carbon neutral device that can be used for multiple IoT purposes.

The grid connected unit first uses the available renewable energy. Only if the batteries are depleted it will consume part of the energy from the grid.

With this, Omniflow systems achieve dramatic savings >90% compared with regular lighting and even >60% with standard LED.

Some projects can be done Off-Grid. Please contact us for site evaluation.

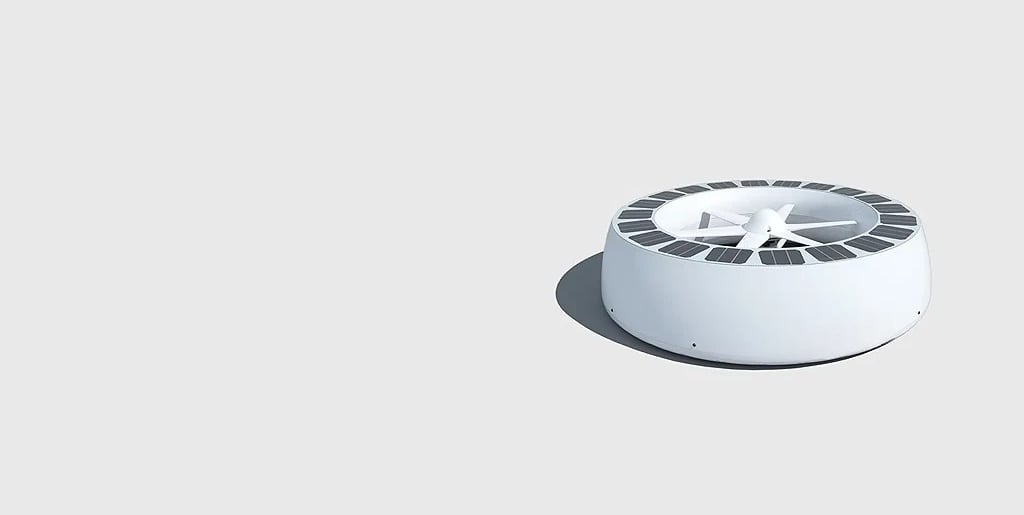

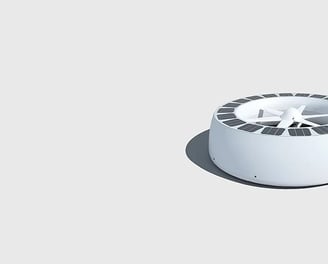

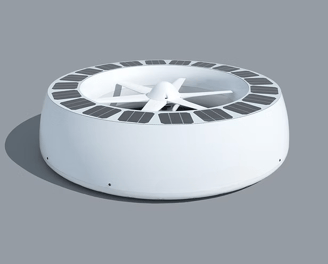

Hybrid Wind & Solar

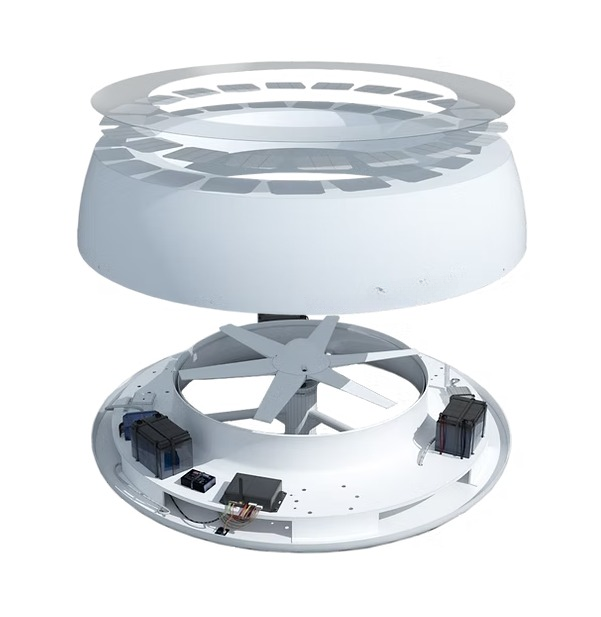

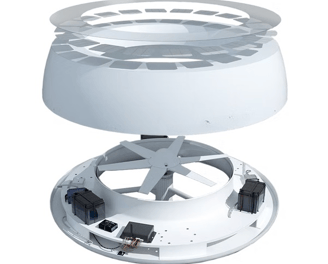

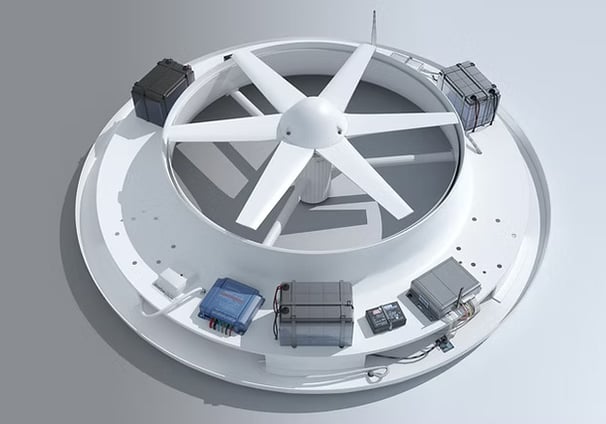

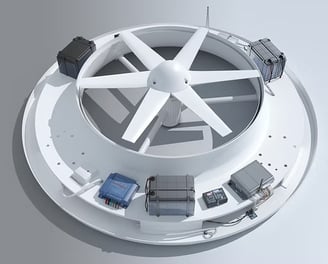

The awarded design offers all functionalities in a fully integrated solution (single component) ready to work out of the box.
It blends in from the most advanced city to the wildest of landscapes.

Patent technology

Dimensions

Ecowin 07

1.20 / 0.30 m (w x h)

Ecowin 035

0.60 / 0.15 m (w x h)

Weight

Ecowin 07

40 Kg

Ecowin 035

10 Kg

Solar power

Ecowin 07

60 W (peak)

Ecowin 035

15 W (peak)

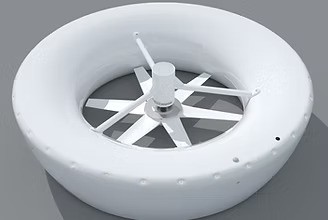

Wind power

Ecowin 07

100 W (rated @11 m/s, steady)

Ecowin 035

15 W (rated @11 m/s, steady)

Battery

Ecowin 07

500 Wh C10 Lead Crystal

Ecowin 035

172 Wh C10 Lead Crystal

Lighting power

Ecowin 07

30 - 180 (w/ Grid-backup)

Ecowin 035

12 - 48 (w/ Grid-backup)

Lumen luminance

Ecowin 07

5100 - 25260 lm

Ecowin 035

2124 - 7368 lm

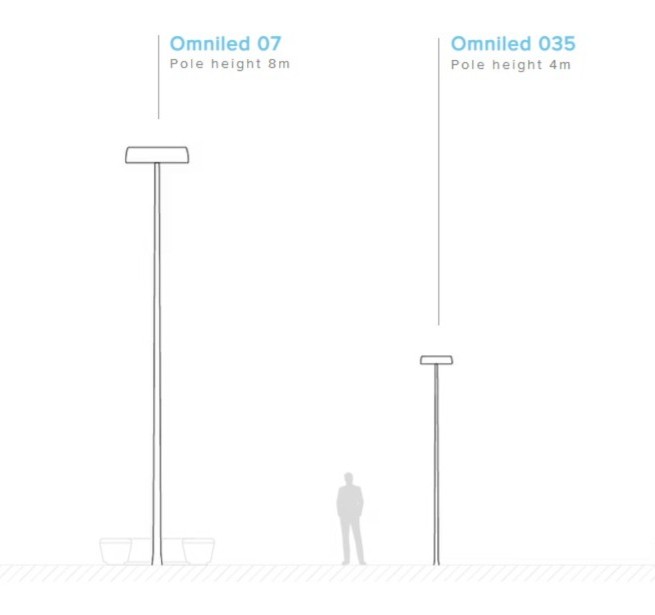

Pole height

Ecowin 07

6/ 8/ 10/ 12 m

Ecowin 035

3/ 4/ 5 m

DC Controller

Ecowin 07 / Ecowin 035

Hybrid wind/solar regulator

Generator

Ecowin 07 / Ecowin 035

Direct drive iron-less start permanent magnet

Color temperature

Ecowin 07 / Ecowin035

2700 - 6000 K

Control

Ecowin 07 / Ecowin 035

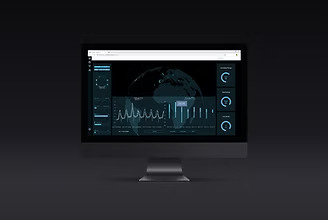

OmniConnect IoT Platform

Optional

Ecowin 07 / Ecowin 035

Wi-Fi, 4G/5G, Small Cell, IP cameras and Video Analytics, EV Charger, Edge computing
